Description

The DS Instruments TT7000 combines a calibrated RMS RF Power Meter, a wide-band frequency counter, and a RF Signal Generator into one miniature USB device. Incredibly useful in production verification environments and other automated test setups, the TT7000 brings great value to any project. Fractional-N synthesis signal generation covers 300MHz to 9600MHz with low phase noise and calibrated adjustable output power. RF Power Meter functionality covers from -45 to +5 dBm for frequencies between 100MHz and 7GHz. Not only is the TT7000 powered from USB and controlled with standard SCPI commands, but it also provides also a stand-alone user interface and display.  No host computer required. Designed and built in USA with only genuine cutting-edge semiconductors.

Now Shipping 2025-R10 hardware with full-band calibrated RF output and standard Ethernet port.

System Operation Modes:

• RF Power Meter and Frequency Counter (simultaneous)
• Signal Generator & Power Meter (simultaneous)
• Power Meter (manual frequency calibration)
• Frequency Counter
• RF Signal Generator
• High-power RF Divider (1X, 2X, 4X, 8X)

TT7000 RF Meter/Counter/Generator Features:

• Crisp OLED Front Display
• Front control buttons & status LEDs
• USB powered and virtual COM port SCPI control
• All-Aluminum black compact enclosure
• Internal precision reference frequency
• Automatic power meter calibration using internal RF frequency counter
• Adjustable power output (Band 1 < 4.8GHz)
• Premium 18GHz microwave SMA jacks
• Low signal generator phase noise
• USB voltage monitor

Technical Specifications:

• Power meter frequency range: 50MHz – 8GHz
• Power meter typical dynamic range: 50dB (-45dBm to +5dBm)
• Power measurement speed: 25mS min (40Hz)
• Power meter Resolution: 0.05dB
• Power meter absolute accuracy: ±1.0dB typical
• Frequency counter range: 100MHz – 7GHz
• Frequency counter sensitivity: -25dBm typical
• Frequency counter resolution: 1KHz
• Frequency counter accuracy: ±3KHz
• Frequency counter speed: 0.1 – 1.0 Second
• Signal generator range: 300 – 9600MHz
• Signal generator bands: 300-4800, 4800-9600MHz
• Band 1 power level: -15 to +15dBm in 0.25dB steps
• Band 2 power level: +12dBm typical
• Signal generator step size: 10Hz
• Internal reference stability: ±280 PPB

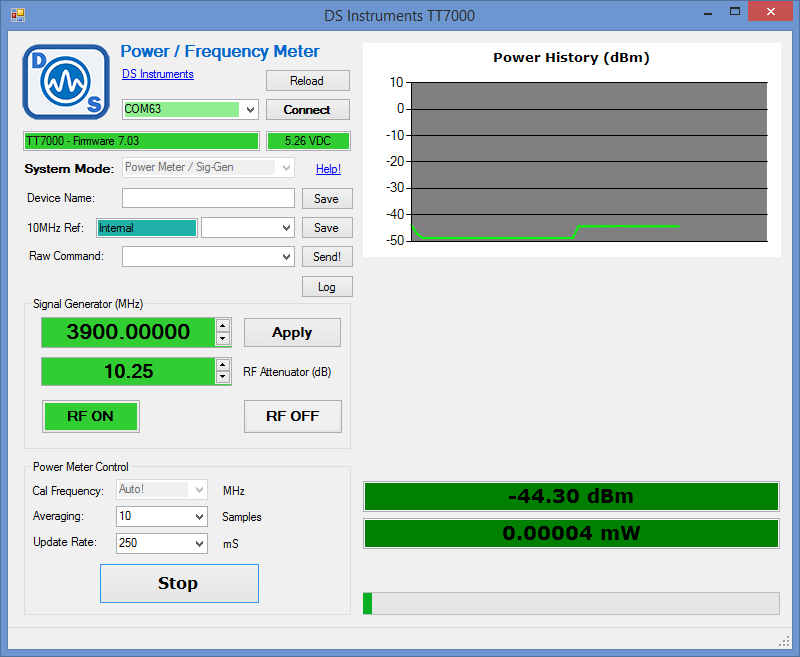

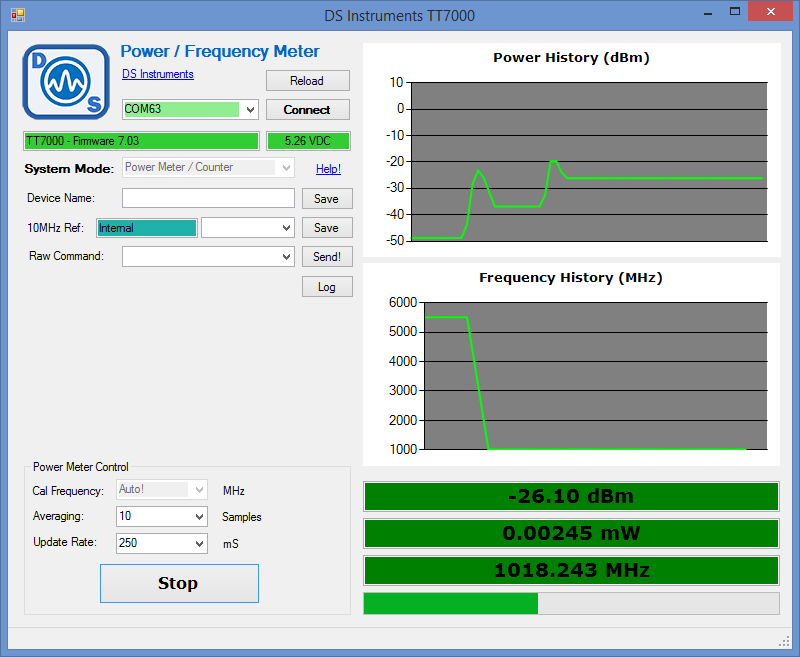

USB Host Control Software:
