Description

The all-new wideband PA6000L smart amp provides a convenient and flexible way to amplify signals from 500MHz to 7.0GHz for a variety of RF applications. The dual USB Type-C ports allow for easy integration into automated test environments using SCPI serial commands. Power and gain control along with temperature and voltage monitoring make this device much faster to setup and implement than competing devices. All DC-DC conversion, linear regulation, gate biasing, and power-up sequencing are done internally by the onboard controller.

Now shipping the USB-powered re-designed REV 10 hardware for 2026-Q1!

7GHz Smart Power Amplifier Features:

• Frequency range: 500MHz – 7.0GHz
• Amplifier gain (Max): 34dB
• Amplifier gain (Min): 3dB
• Variable-gain step size: 0.25dB
• Typical P1dB: +29dBm
• Typical saturated output power: >+30dBm
• Connectors: 18GHz gold microwave SMA
• Output return loss: ~9dB
• Input return loss: ~15dB
• Typical noise figure (1.0-7.0GHz): 6dB
• USB Type-C virtual com port serial control
• Power Input: dual USB Type-C (1.5A each required)
• Gain control buttons
• Internal temperature controller with fan
• Status LEDs & audio warning alerts



PA6000L Typical Applications

• Automated testing environments
• Production verification
• Educational / university lab use
• Aerospace / defense research
• Wireless infrastructure
• Antenna research
• Communication link design
• EMC testing

Mechanical Information

PC Control Software

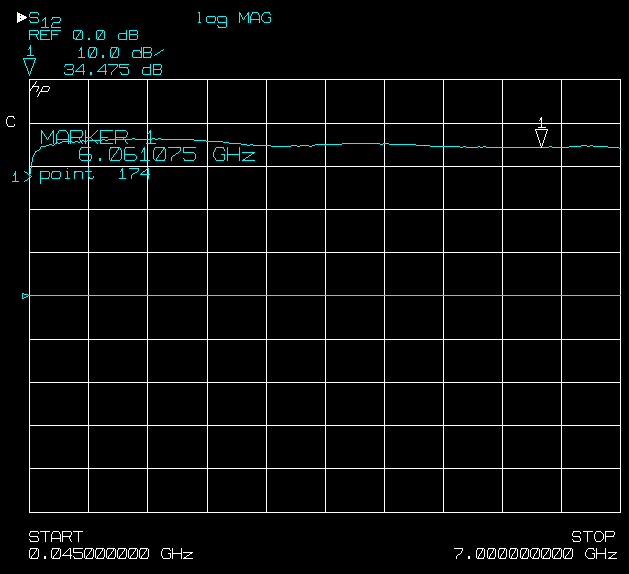

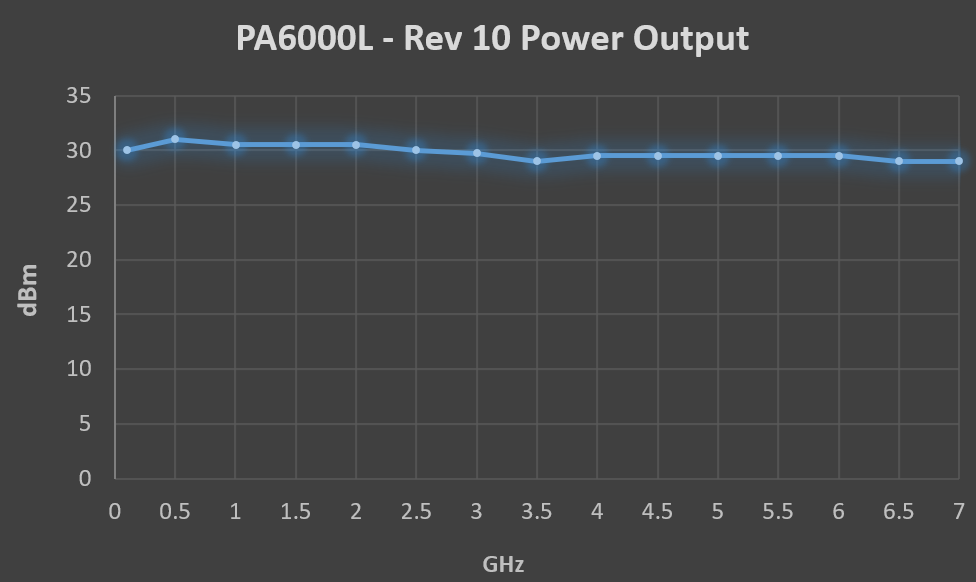

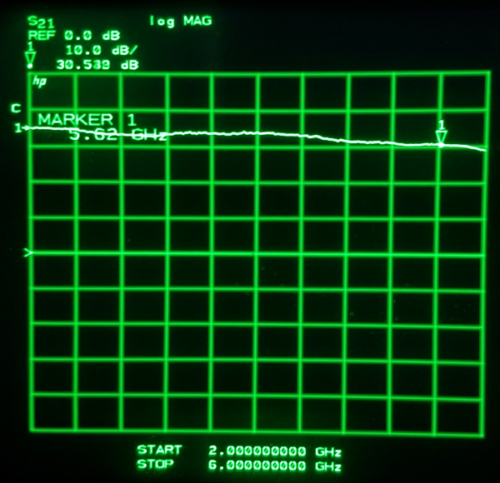

Power Amplifier Performance Plots
