SG12000PRO PureSine Generator

$2,699

SKU: SG12000PRO Category:

Description

The DS Instruments SG12000PRO RF Signal Generator continues to set the industry standard in affordable ultra-compact RF Signal Generation. The SG12000PRO provides a pure, low-harmonic signal unlike most other compact signal generators. This fully synthesized, modern fractional-N synthesis device covers from 55 to 13000MHz. Output power is adjustable in steps and continuously over the entire frequency range. The bright OLED display provides useful feedback for the user, and front control buttons provide a quick alternative to USB control. This PRO version has phase noise approximately 30dB lower than the standard SG12000, a much smaller minimum frequency step size, a more accurate output level calibration, a wider frequency range, and higher max output power.

        Now shipping 2024 REV 9 with upgraded harmonic filtering!


Premium SG12000PRO Microwave Generator Features:

  • 13GHz+ maximum output frequency
  • Internal wideband harmonic filtering matrix
  • Ultra-low phase noise
  • Stand-alone and USB remote operation
  • Tiny frequency step size
  • Adjustable output power (70dB Range) (Step & Variable)
  • Industry-standard SCPI command support
  • Internal ultra-low-noise 100MHz & 10MHz reference sources
  • Front user frequency step buttons
  • List and Scan frequency-sweeping functionality
  • Front-mounted bright OLED display
  • Simple Windows control GUI
  • Powered from standard USB-C
  • Easy to interface with any software packages (.NET, Matlab, python, android, linux…)
  • Ethernet now included as standard!

RF Signal Generator Specifications:

  • Calibrated frequency range: 60-12500MHz
  • Extended frequency range: 55-13500MHz
  • Calibrated power output range: -45dBm to +15dBm
  • Extended power output range: -50dBm to +17dBm typical
  • Highest harmonic level: -35dBc typical
  • Phase noise at 12GHz: -95dBc @ 10KHz offset
  • Typical frequency step size: 2Hz
  • Harmonic filtering bandwidth: 300MHz – 12.5GHz
  • Calibrated power step size (0-6GHz): 0.25dB
  • Calibrated power step size (6-13GHz): 0.50dB
  • Uncalibrated power adjustment increment (0-13GHz): 0.05dB typical
  • Dimensions: 2.75″ x 1.25″ x 5.15″
  • Input Voltage: 5V Standard USB-C (1.50A max)
  • Output Impedance: 50 Ohm
  • RF Connector: Premium gold 18GHz microwave SMA

Signal Generator Common Applications:

  • Automated testing environments
  • General RF Lab use
  • Flexible LO sourcing
  • Antenna design
  • EMC Testing
  • Production verification and testing
  • Educational / university lab use
  • Aerospace / Defense Research
  • 802.11n Development / Testing
  • LTE Engineering

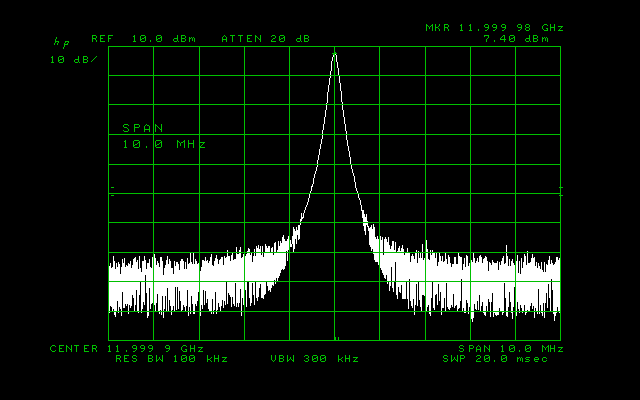

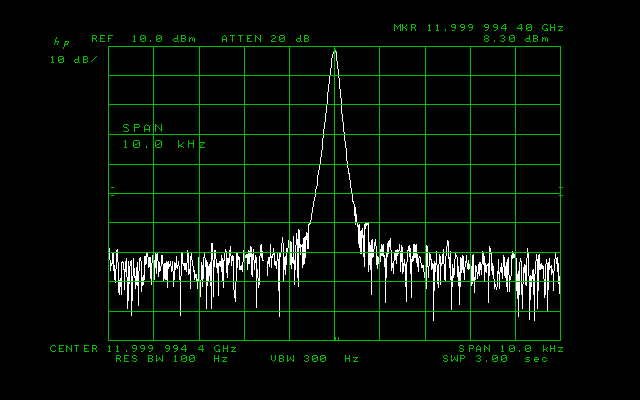

SG12000PRO Performance and Charts:

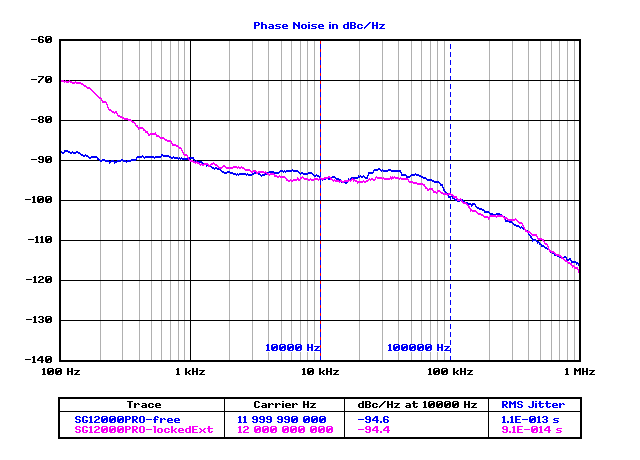

puresine signal generator 12GHz

Mechanicals:

Signal Generator

SG12000PRO Control Software:
