SG6000PRO PureSine RF Generator



SKU: N/A Category:


The NEW DS Instruments SG6000PRO RF Signal Generator continues to set the industry standard in affordable ultra-compact RF Signal Generation. The SG6000PRO provides a pure low-harmonic signal unlike most other compact signal generators. This fully synthesized, modern fractional-N synthesis device covers up to 7.0GHz. Output power is auto-leveled to +10dBm and can be adjusted downward in 0.25dB steps up to 60dB, or continuously via the internal variable attenuator. The bright OLED display provides useful feedback for the user, and front control buttons provide a quick alternative to USB control. The PRO has phase noise approximately 20dB lower than the standard SG6000L, a much smaller minimum frequency step size, a more accurate output level attenuator, and a wider frequency range.

         Shipping Rev 5 with enhanced filtering as of 2021!

Premium RF Signal Generator Features:

  • Active harmonic filtering (< -35dBc tuned filters)
  • Low phase noise (-92dBc @ 10KHz)
  • Stand-alone and USB remote operation
  • Up to 7GHz+ output frequency (Upgraded for 2021!)
  • Adjustable output power (70dB Range) (Step + Variable)
  • Industry-standard SCPI command support
  • Internal ultra-low phase-noise 100MHz reference
  • Frequency step size of only 2Hz
  • Front user control buttons for frequency/power
  • Frequency-sweeping support (list & scan)
  • Front-mounted bright OLED display
  • Simple Windows control GUI
  • Powered from standard USB-C
  • Easy to interface with all software packages (.NET, Matlab, python, android, linux…)
  • No extra drivers required for all common host systems
  • Code examples provided for automated control
  • Optional Ethernet

Device Technical Specifications:

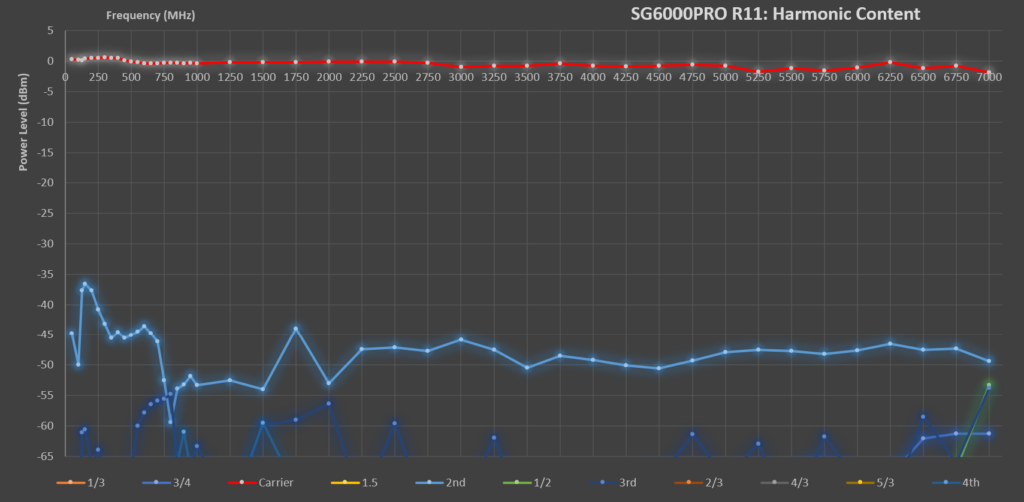

  • Highest Harmonic Levels: -30dBc typical
  • Frequency Range: 50-7000 MHz
  • Device Power Level: -50 to +10 dBm
  • Phase Noise at 6GHz: -90dBc @ 10KHz offset
  • Internal Attenuator (digital): 64dB (250 x 0.25dB Steps)
  • Internal Attenuator (variable): ~15dB (10 bit DAC)
  • Dimensions: 2.75″ x 1.25″ x 4.15″
  • Input Voltage: 5V Standard USB-C
  • Output Impedance: 50 Ohm
  • RF Connector: Premium gold 18GHz microwave SMA

SG6000PRO REV5 Common Applications:

  • Automated testing environments
  • General RF Lab use
  • Flexible LO sourcing
  • Antenna design
  • EMC Testing
  • Production verification and testing
  • Educational / university lab use
  • Aerospace / Defense Research
  • 802.11n Development / Testing
  • LTE Engineering

Signal Generator Phase Noise Data:

Time Domain Plots:

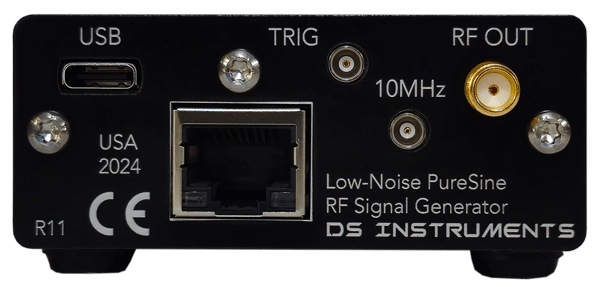

PureSine SG6000PRO Enclosure:

SG6000PRO Control Software

Additional information

Network Port

Ethernet & USB & Display, USB & Display
