4 Port RF Switch – 6GHZ


SKU: N/A Category:


Optional Ethernet now available!

DS Instrument’s SW6004 RF switch is both USB controlled via SCPI commands, and a front panel select button. Simple and convenient USB power and status LEDs for the user. This 2 watt absorptive SP4T wideband switch is perfect for automated or remote test setups. Ultra- low insertion loss combined with solid-state speed and reliability make this a great upgrade path from old mechanical relay devices. (SW6004E for Ethernet version)

SW6004 Specifications (Rev6):

  • 10MHz – 6000MHz frequency range
  • 4 Switched SMA RF Ports
  • Max RFC input power: +33dBm (2.0 Watts)
  • Max Terminated power: +24 dBm
  • Low insertion loss (2.5dB Typical)
  • Return loss: > 12dB
  • Solid State Reliability
  • Bi-directional
  • Fast switching time
  • Superior Isolation (60dB at 1GHz, 30dB @ 6GHz)
  • LED port status indication
  • Impedance: 50 Ohm
  • Micro-USB Powered

Switch Matrix Mechanicals:

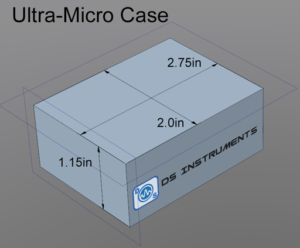

mini attenuator

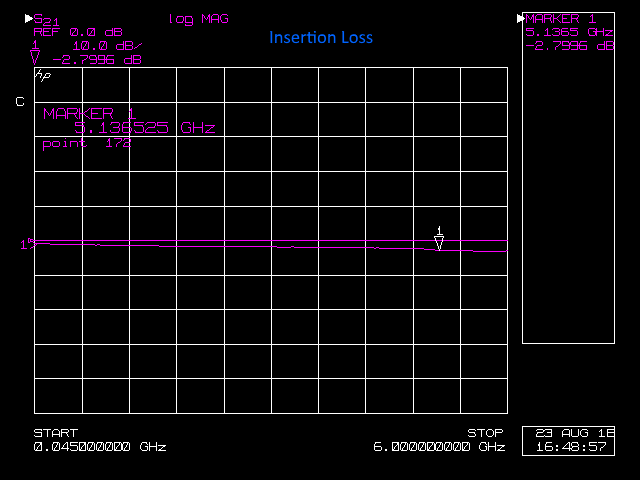

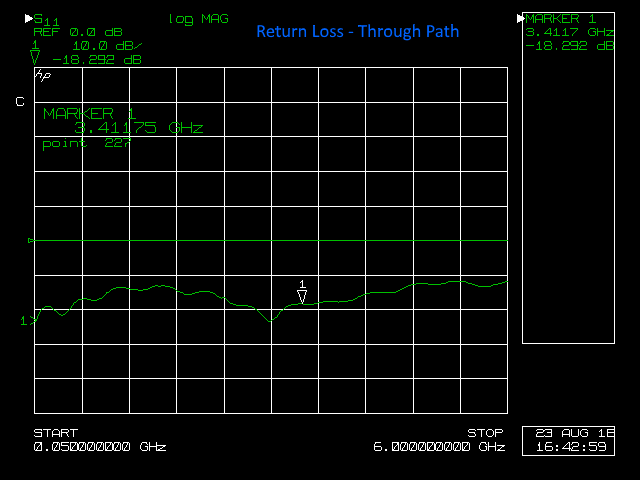

6GHz SP4T Switch – RF Performance:

Common Applications:

  • Automated testing environments
  • General RF Lab use
  • Production verification and testing
  • Educational / university lab use
  • Aerospace / Defense Research
  • 802.11n Development / Testing
  • Antenna switching
