Description

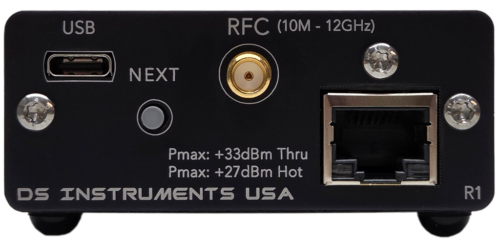

DS Instrument’s new SW1204E microwave switch offers control flexibility and performance at a great value. It can be controlled from USB and ethernet via simple SCPI commands, or using a rear push button. Standard USB power and status LEDs make the user experience simple and convenient. This 2-watt absorptive SP4T wideband switch is perfect for automated or remote test setups. Ultra- low insertion loss combined with solid-state speed and reliability make this a great upgrade path from old mechanical relay devices. This new model replaces our long-standing 6GHz SW6004E.

SW1204 2026 Specifications:

• 10MHz – 12GHz frequency range

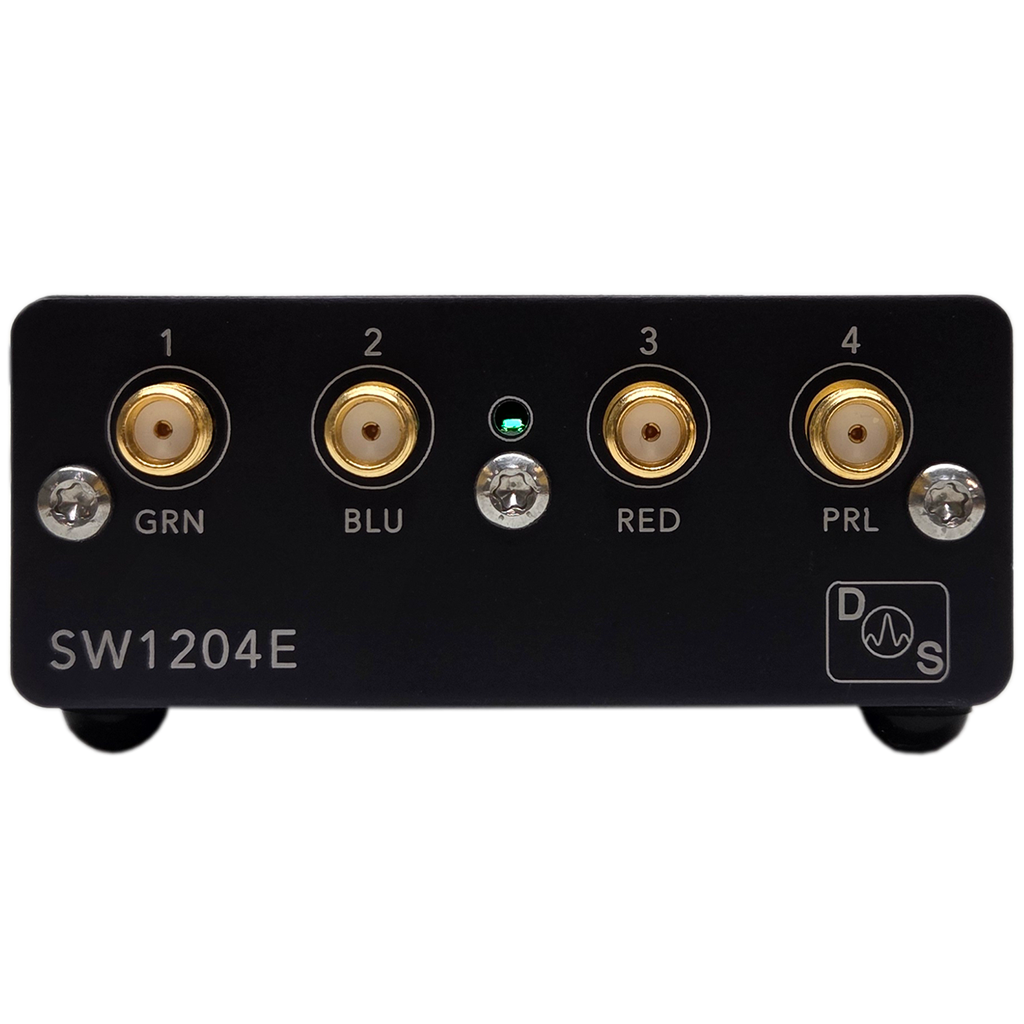

• 4 switched SMA RF ports
• Max RFC input power: +33dBm (2.0 Watts)
• Max terminated power: +27dBm
• Low insertion loss:  2dB – 5dB
• Return loss: > 12dB
• 1dB Compression: 37dB typical
• Third-order intercept: 58dBm (@8GHz)
• Solid-state reliability
• Non-reflective topology
• Bi-directional ports
• Fast switching time
• Superior Isolation (35dB @ 6GHz, 30dB @ 10GHz)
• LED port status indication
• Impedance: 50 Ohm
• USB Type-C Powered
• Ethernet port standard

Switch Matrix Mechanicals:





12GHz SP4T Switch – RF Performance:





Common Applications:

• Automated testing environments
• General RF Lab use
• Production verification and testing
• Educational / university lab use
• Aerospace / Defense Research
• 802.11n Development / Testing
• Antenna switching
